Ferruls Fittings

Tridev Pipe Fittings is a leading supplier and stockholder of compression pipe fittings, also known as ferrule fittings in stainless steel 304 and 316 grades. On demand we can also offer ferrule fittings in other grades such as brass, copper, nickel alloys and carbon steel. Double ferrule fittings are require no flaring of the metal tube to install. They are compressed onto the tubing to form strong leak proof connection in process, power and instrumentation applications.

The single and double ferrule fittings are available in a broad range of sizes, materials, and configurations. Stainless steel ferrule fittings are widely used in hydraulic and pneumatic applications in a range of industries such as oil and gas, petrochemicals, natural gas, fertilizers and power generation.

Double Stainless Steel Ferrule Fittings – Construction

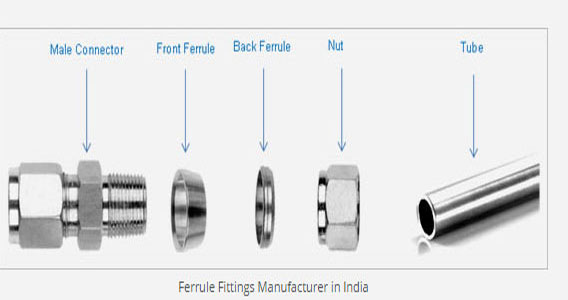

The basic general stainless steel ferrule tube fitting is a 4 piece fitting set comprising of a nut, back ferrule, front ferrule and the body. With the addition of tubing at the time of installation, it becomes a 5 piece solid sealed connection.

Double/Twin Ferrule Fittings Standard Configurations

Tube to Tube – Straight, Elbow, Tee, Cross, Bulk Head

Tube to Male – Male Stud, Male Elbow, Male Tee

Female Connector – Female Straight, Elbow, Tee

Positionable Elbow & Tee (Swivel)

Tube Closure – Plug, Cap

Weld Connector, Nut & Ferrule Set

Double Ferrule Fittings Sizes, Materials

Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Material Grades	SS 304, SS 316, Brass, Special Alloys
Thread	NPT, BSP, BSPT, UNF
Pressure Rating	6000PSI for Stainless Steel, 300/1000/3000PSI for Brass
